TORMACH PCNC 440 Fault Fix

Spindle Drive (VFD)

The Spindle Drive is the power electronic unit that modulates voltage and frequency to the motor. Internal failure of the Insulated-Gate Bipolar Transistors (IGBTs) or a breakdown in the DC bus capacitor bank will trigger a hard fault signal to the PathPilot controller to prevent a catastrophic short circuit. Replacing the entire drive assembly is the standard resolution for persistent electronic faults.

Spindle Drive Cooling Fan

Variable Frequency Drives generate significant waste heat during the PWM (Pulse Width Modulation) process. If the integrated cooling fan fails or slows due to bearing friction, the drive's heat sink temperature will exceed the thermal safety threshold, resulting in an automatic thermal fault. This part is a common wear item in dusty machining environments.

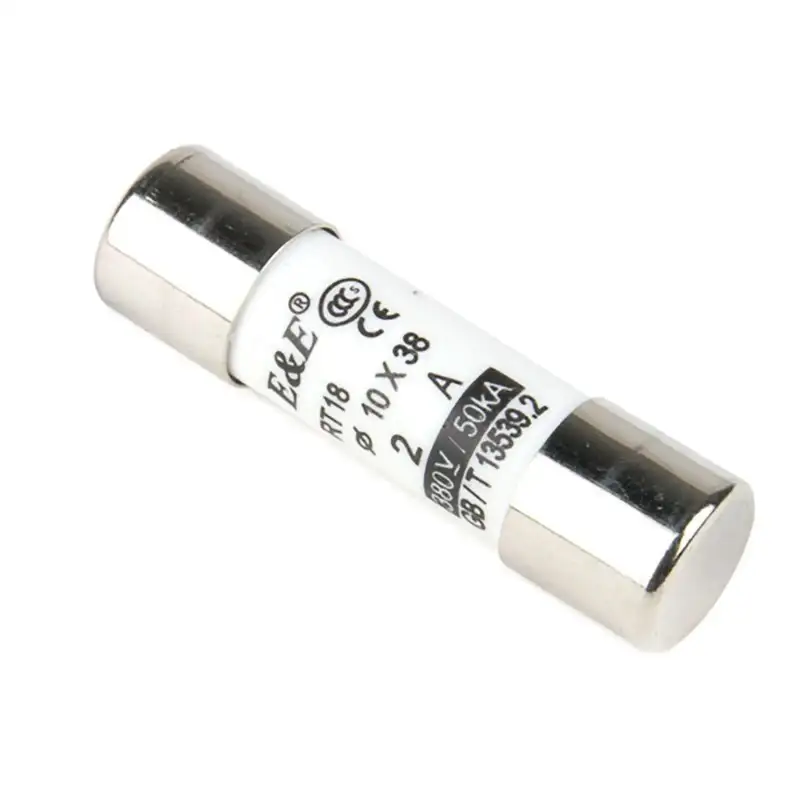

Spindle Drive Fuse

The spindle drive circuit is protected by a high-interrupt capacity fuse designed to blow during an overcurrent event, such as a tool crash or motor stall. If the fuse is blown, the drive loses its power rail, which the machine controller interprets as a communication or hardware fault. Replacing the fuse restores the power circuit required for drive logic initialization.
