MICROSOFT XBOX SERIES X General Troubleshooting

HDMI 2.1 Port Connector

The most common failure is physical damage to the 19-pin internal contact array. Repeated insertion cycles or lateral strain causes the pins to bend or the solder pads connecting the port to the PCB to fracture, breaking the electrical path for TMDS data signals. Replacing the port restores the mechanical and electrical integrity of the signal interface.

SKU: N/A (Generic OEM Specification)

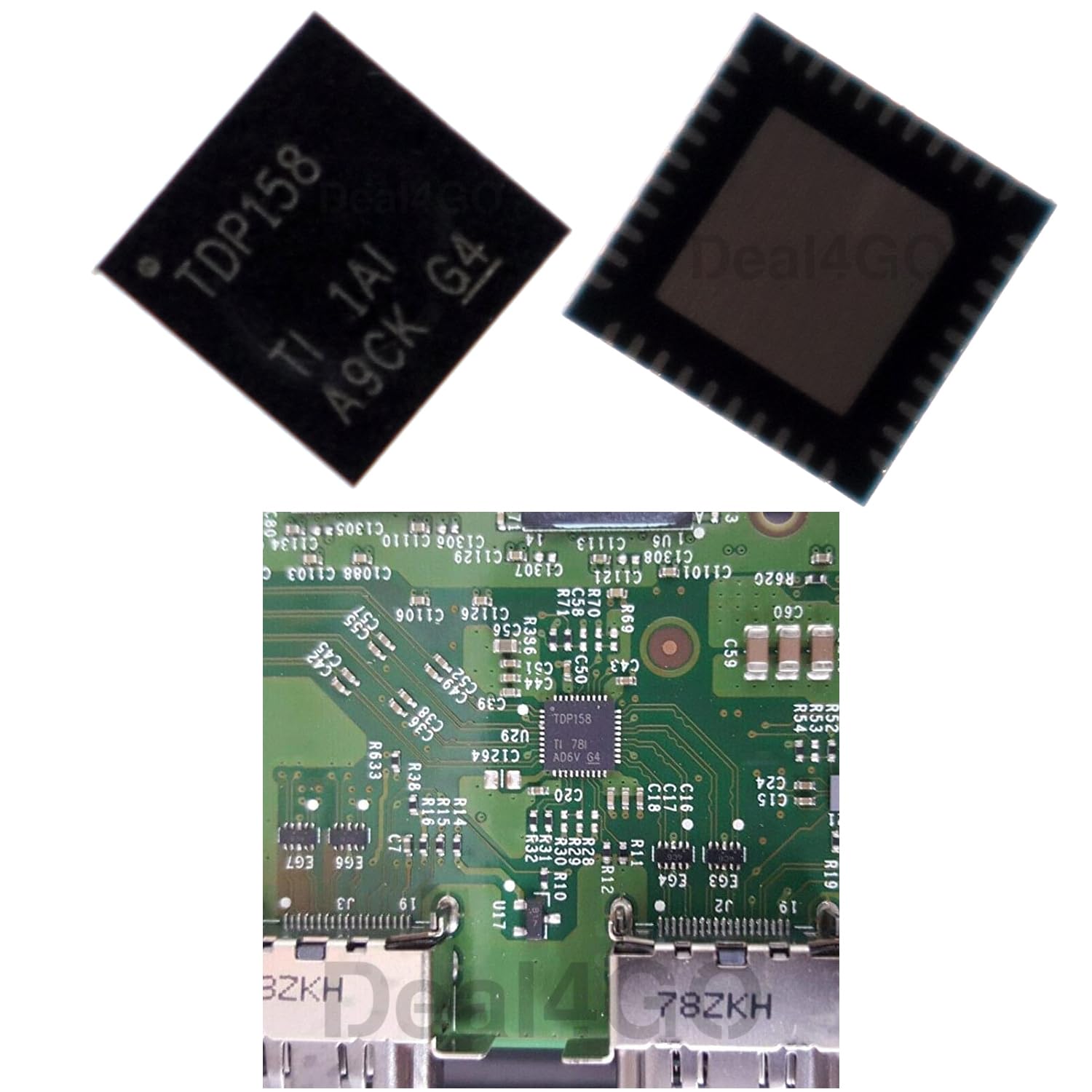

HDMI Retimer IC (Control Chip)

If the physical port is intact, the HDMI Retimer IC (TDP158) is the next point of failure. This chip manages signal integrity and ESD protection; it can suffer from thermal fatigue or electrical overstress, resulting in a failure to negotiate a handshake with the display despite a solid physical connection.

SKU: TDP158

Ultra High Speed HDMI 2.1 Cable

Internal conductor breakage or connector housing deformation within the cable itself can prevent the 48Gbps bandwidth required for 4K/120Hz signals. A degraded cable often manifests as a black screen or 'No Signal' error when the console attempts to handshake at high-bandwidth settings.
