XBOX ONE S HDMI PORT REPLACEMENT General Troubleshooting

Xbox One S HDMI Port

The most frequent root cause is mechanical fatigue or physical breakage of the internal pins within the HDMI connector. This typically occurs from cable tension or frequent insertion/removal, leading to a loss of continuity between the motherboard and the HDMI cable.

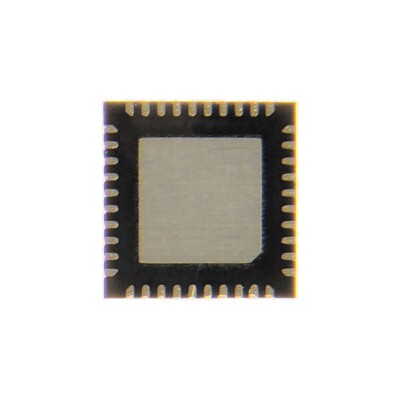

HDMI Retimer IC

In cases where the physical port appears undamaged but the console lacks video output, this integrated circuit is the primary failure point. It is highly susceptible to damage from voltage spikes when 'hot-plugging' cables while the console is powered on.

Xbox One S HDMI Port Fix Kit

This kit includes the specialized tools required for console disassembly along with the replacement port. Given the Xbox One S's construction, standard household tools often cause housing damage, making the specific spudgers and drivers in this kit necessary for a successful service.
