WHIRLPOOL WDF520PADM Not Draining

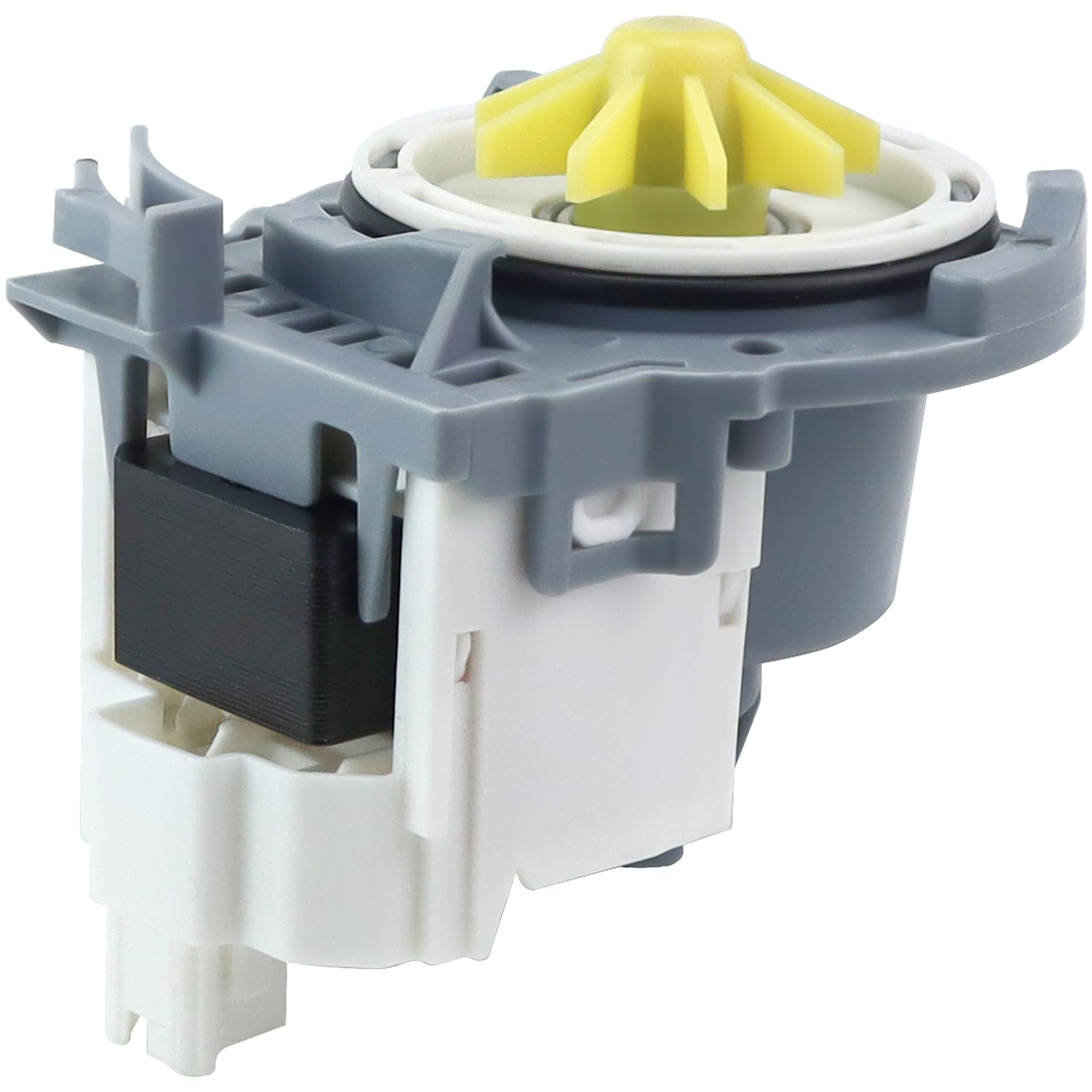

Drain Pump Motor

The drain pump motor is a dedicated centrifugal pump that evacuations wastewater. It frequently fails due to either mechanical seizure from debris (pattern failure in dishwasher sumps) or an open circuit in the motor windings. If the impeller cannot spin freely or the electromagnetic field fails to energize, the dishwasher will bypass the drain phase and leave standing water.

SKU: WPW10348269

CHECK PRICE ✓ THIS FIXED IT

Drain Hose Check Valve

The check valve is a one-way rubber flapper designed to prevent wastewater from backflowing into the tub. Over time, exposure to high-temperature detergents causes the rubber to swell or distort, which can lead to it sticking in the closed position, effectively 'locking' the water inside the machine despite pump activation.

CHECK PRICE ✓ THIS FIXED IT

Drain Hose (High-Loop Configured)

Obstructions often occur at the connection point between the dishwasher and the sink drain or garbage disposal. If the internal corrugations of the hose become impacted with sediment or fat deposits, the pump's head pressure is insufficient to overcome the restriction, resulting in a failed drainage cycle.

CHECK PRICE ✓ THIS FIXED IT
