SCHWINN IC4 INDOOR CYCLING BIKE Not Calibrating
| CONF | DIAGNOSIS | PART MATCH | ACTION |
|---|---|---|---|
|
92%
CONF
|

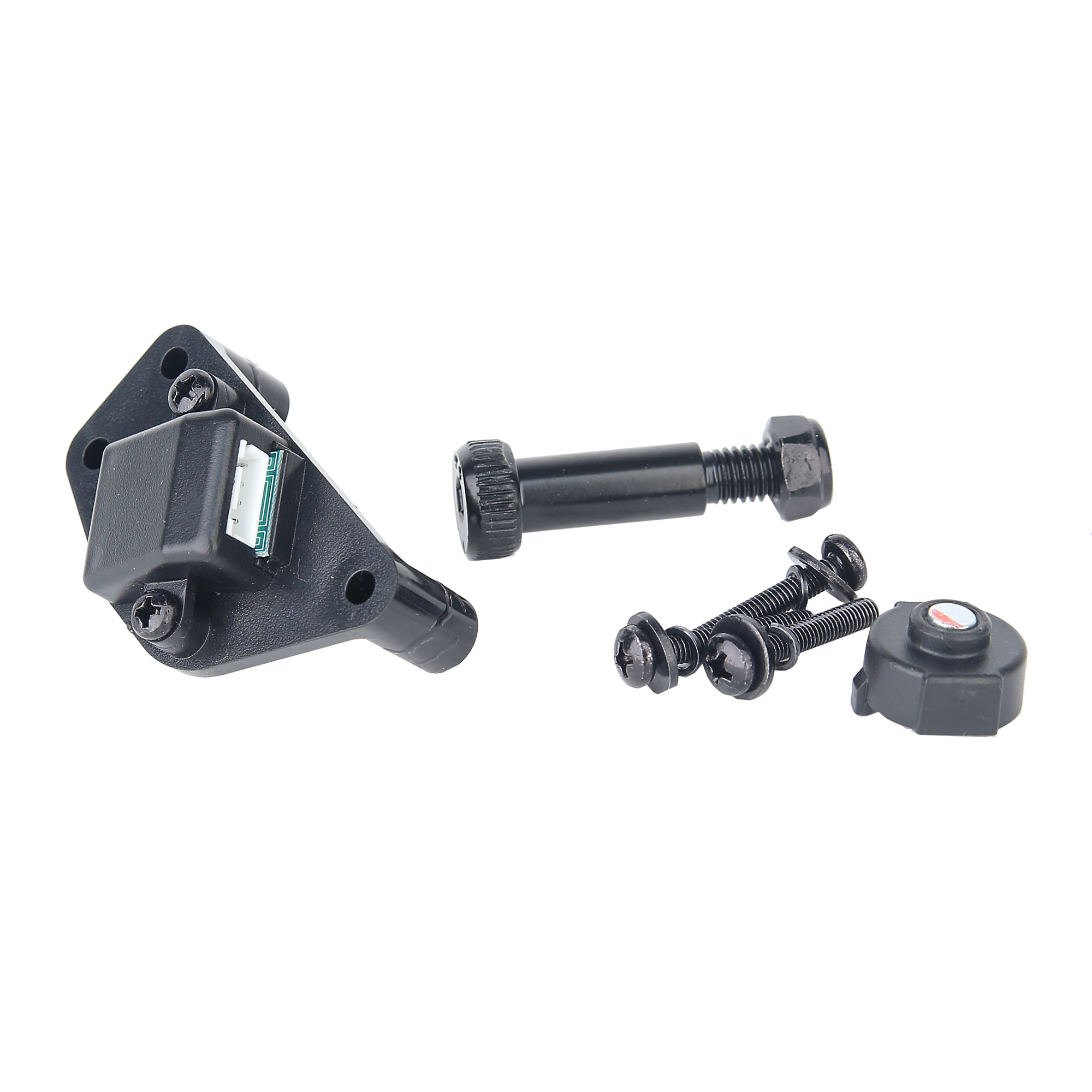

Resistance Sensor Assembly
The resistance sensor tracks the physical position of the magnets relative to the flywheel via the adjustment knob. If the sensor's internal resistance element wears out or shifts, it sends erratic voltage signals that fall outside the expected calibration parameters defined in the console's firmware. Replacing this sensor restores the linear feedback required for the console to map the 0-100 resistance scale accurately.
|
|
|
|
8%
CONF
|
Secondary Circuit / Wiring Check
Inspect wiring harness.
|
|
DIY Repair Guide
Watch exactly how to replace the Resistance Sensor Assembly.
