POLARIS SPORTSMAN 850 Overheating
| CONF | DIAGNOSIS | ACTION |
|---|---|---|
|
96%
CONF
|

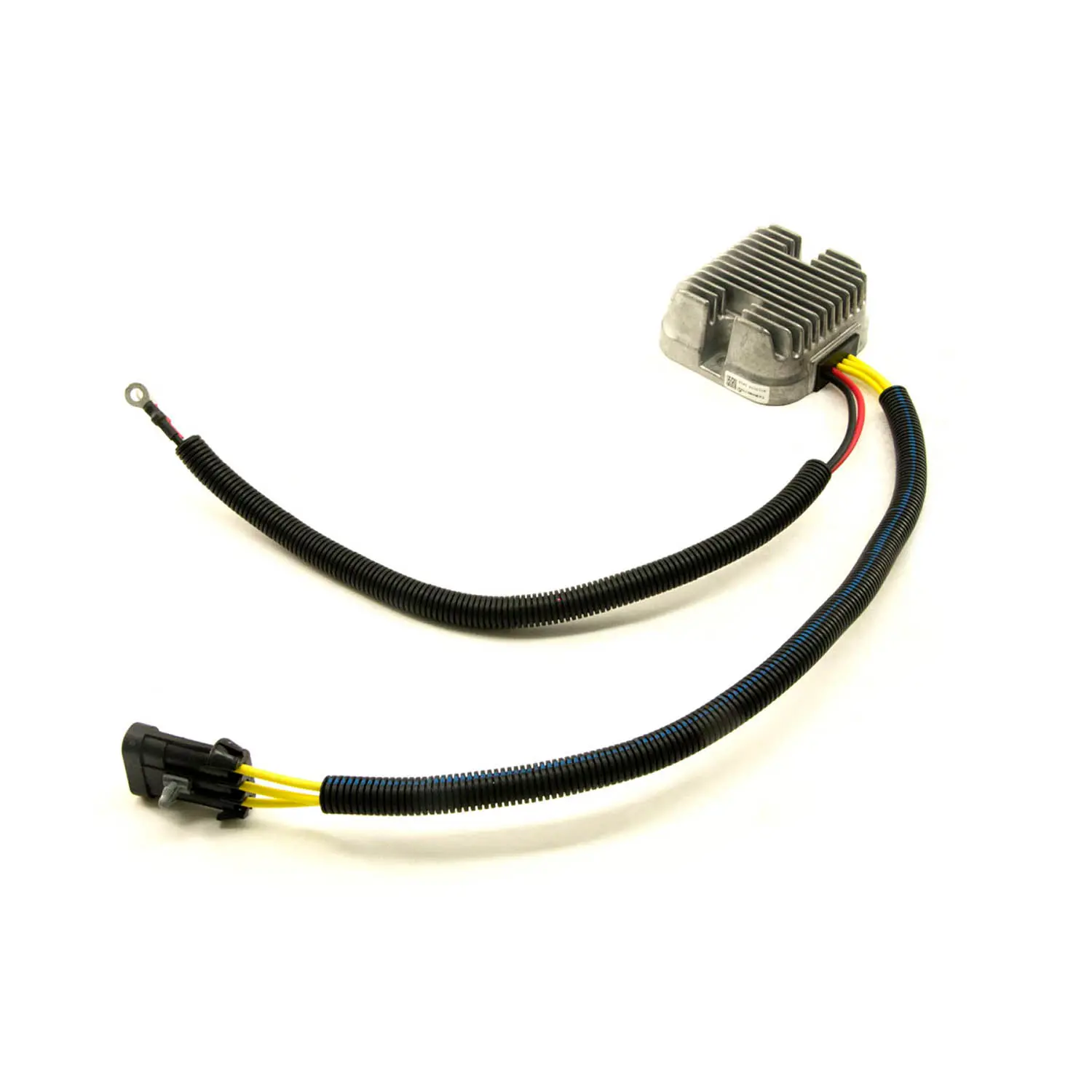

Heavy Duty Voltage Regulator Rectifier
This updated OEM component replaces the failure-prone 4014543 unit with improved internal heat dissipation and potting material. The shunt-style circuitry in the original unit frequently suffers from thermal fatigue, causing the housing to melt or the internal diodes to short-circuit. The heavy-duty version is designed to handle the high-amperage output of the Sportsman's 3-phase stator without reaching critical thermal thresholds.
|
|
|
2%
CONF
|
Regulator Connector Pigtail Repair Kit
Overheating in the charging system often manifests as melted plastic at the harness connector due to increased electrical resistance (Joule heating). When terminal tension is lost or corrosion enters the plug, the resulting heat can destroy both the regulator and the main harness. Replacing the damaged connector ensures a low-resistance path for the high-current AC and DC lines, preventing future thermal damage.
|
|
|
2%
CONF
|
Voltage Regulator Relocation Kit
The factory mounting location on many Sportsman 850 models provides insufficient airflow for the regulator's heat sink to function effectively. Relocating the unit to a forward-facing position or a more open area of the chassis allows for convective cooling during vehicle movement. This reduction in ambient temperature prevents the regulator from exceeding its maximum operating temperature during high-demand electrical usage.
|
DIY Repair Guide
Watch exactly how to replace the Heavy Duty Voltage Regulator Rectifier.
