MSI RAIDER GE78 HX Hx Hinge Repair Guide

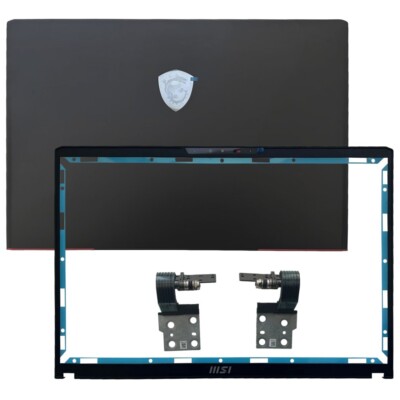

LCD Back Cover Assembly

The structural failure in the GE78 HX series typically involves the fracture of the thermoplastic standoffs that house the brass threaded inserts. Over time, the torque required to articulate the display exceeds the shear strength of the plastic mounting points on the back cover. Replacing the back cover provides new, un-fatigued mounting points to secure the hinge mechanism.

Left and Right Hinge Set

Mechanical friction within the hinge pivot increases due to lubricant degradation or dust accumulation, leading to seized or overly stiff movement. This increased resistance is the root cause of the torque that destroys the chassis mounts. Installing new hinges ensures the force required to open the lid remains within the design tolerances of the plastic housing.

Palmrest / Top Case Assembly

In cases where the hinge has detached from the base of the unit rather than the screen, the failure lies in the top case mounting standoffs. Similar to the lid failure, the plastic chassis cannot withstand the leverage exerted by a stiff hinge, requiring a full replacement of the upper deck to restore structural integrity.
