KENMORE ELITE 795-SERIES Error
| CONF | DIAGNOSIS | PART MATCH | ACTION |
|---|---|---|---|
|
90%
CONF
|

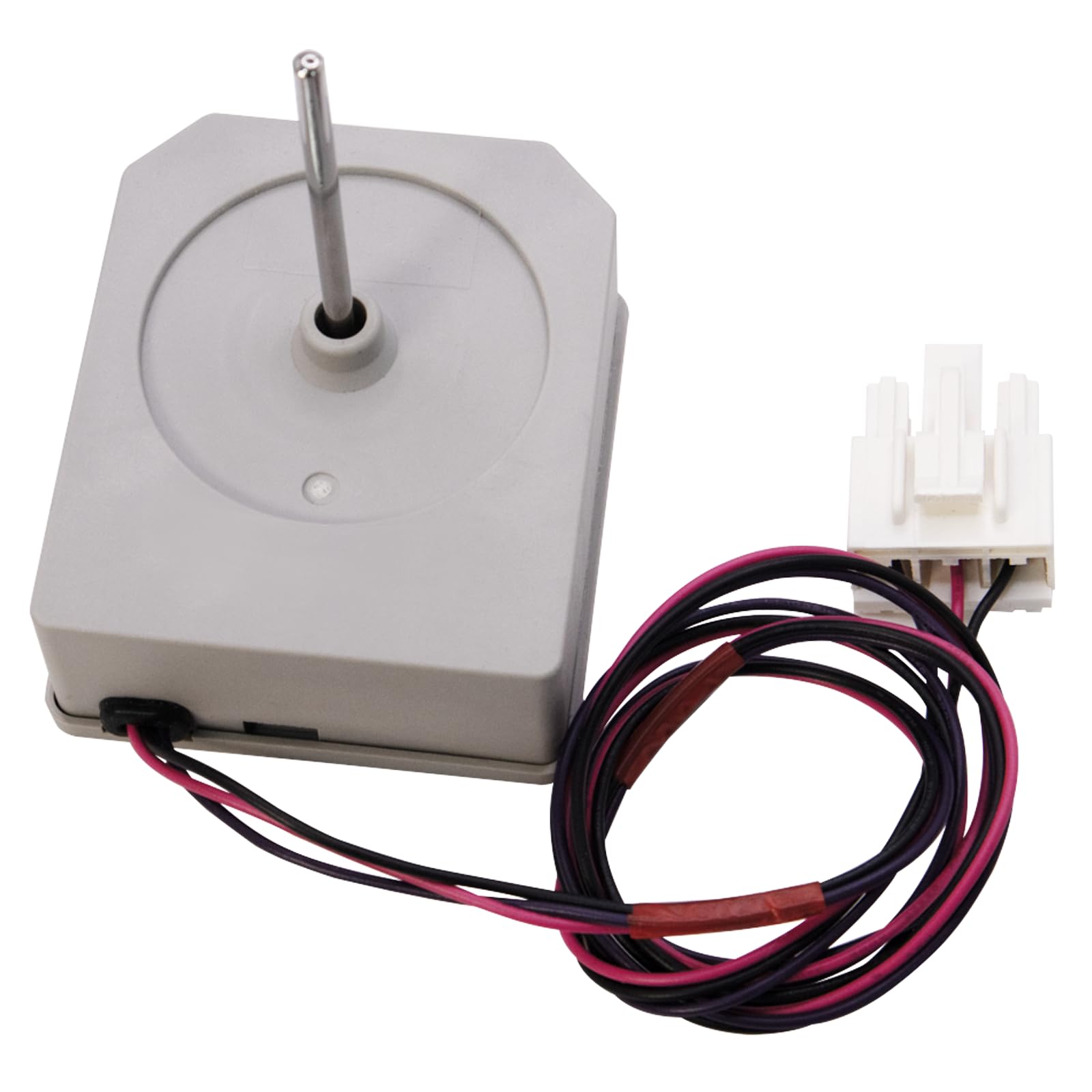

Evaporator Fan Motor
The 'Er FF' code specifically indicates the control board is not receiving an RPM feedback signal from the evaporator fan. This is commonly caused by moisture ingress into the motor bearings or a failure of the internal Hall effect sensor. Replacing the motor restores the airflow circulation required to maintain refrigerator compartment temperatures.
SKU: 4681JK1004D
|
|
|
|
5%
CONF
|
Main Power Control Board
If the fan motor is replaced and the error persists, the fan drive circuit on the PCB has likely failed. This circuit is responsible for both providing the 12VDC pulse-width modulated (PWM) signal to the motor and interpreting the return frequency signal. A failure here prevents the logic processor from confirming fan operation.
|
|
|
|
5%
CONF
|
Defrost Thermistor
A faulty thermistor can cause the defrost cycle to terminate prematurely, leading to ice buildup on the evaporator coils. This ice eventually expands into the fan shroud, mechanically seizing the fan blades. While the fan is the immediate cause of the error, the thermistor is the root cause of the environmental conditions leading to the stall.
|
|
DIY Repair Guide
Watch exactly how to replace the Evaporator Fan Motor.
