HONDA RUBICON 500 Hondamatic Initialization Failed
| CONF | DIAGNOSIS | ACTION |
|---|---|---|
|
93%
CONF
|
Angle Sensor Assembly
The Angle Sensor provides the critical feedback loop to the ECM regarding the swash-plate's orientation. During initialization, the ECM moves the swash-plate to its mechanical limits; if the sensor's resistance is out of spec or the wiper is worn, the ECM cannot verify the position and fails the calibration process. This is the most frequent electrical failure on Honda Rubicon hydrostatic units.
|
|
|
4%
CONF
|

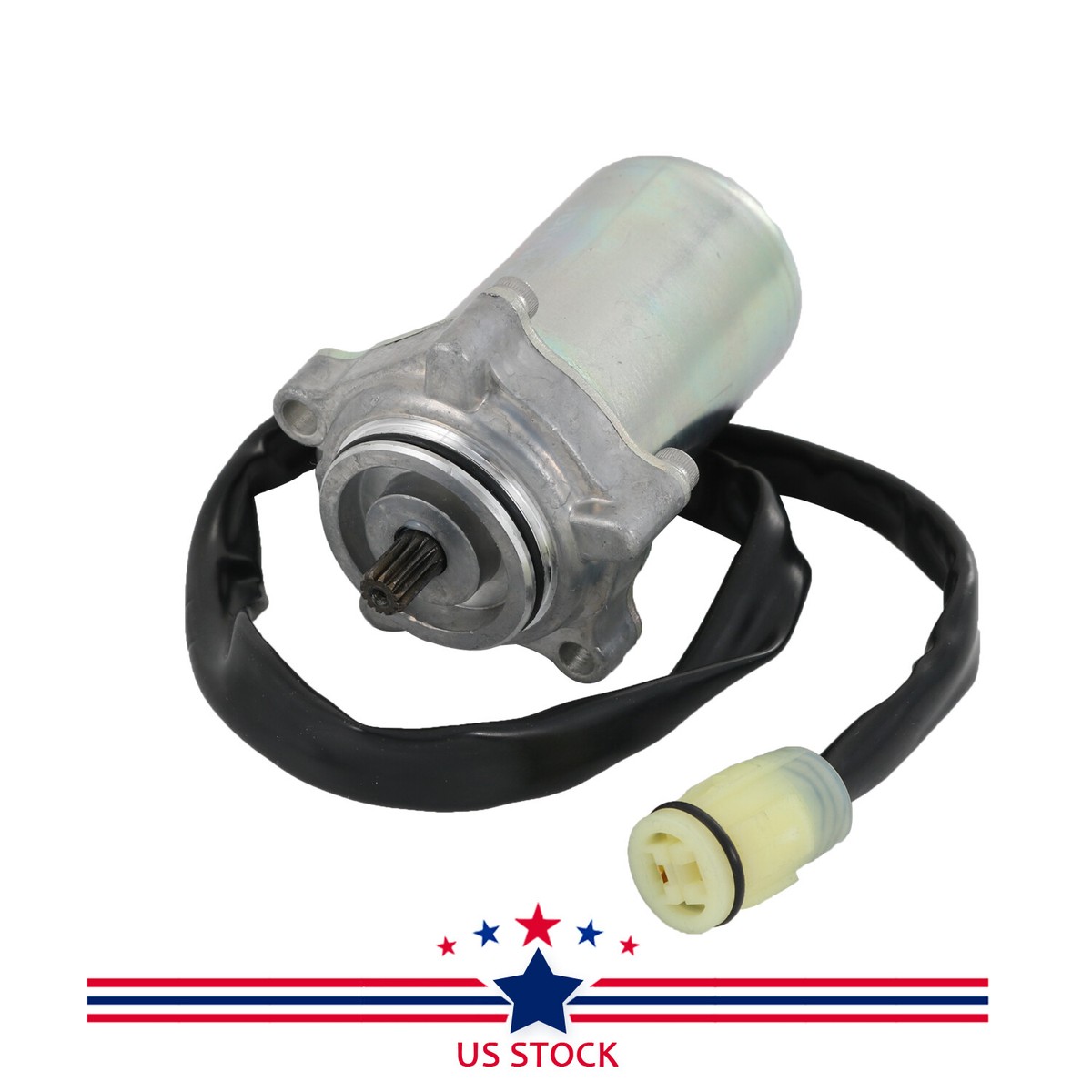

Shift Control Motor
This electric motor physically drives the ratio changes in the Hondamatic unit. If the motor brushes are carbon-fouled or the internal magnets are damaged, the motor will lack the torque to move the swash-plate during initialization or will 'lock,' causing the ECM to timeout and display the failure code.
SKU: 31300-HN2-003
|
|
|
3%
CONF
|
Gear Position Switch
The ECM requires a 'Neutral' confirmation signal to initiate the calibration sequence. If the gear position switch is faulty or contaminated, it may send erratic signals (or no signal) to the ECM, preventing the initialization routine from starting or completing correctly.
|
DIY Repair Guide
Watch exactly how to replace the Angle Sensor Assembly.
