NINTENDO GAME BOY COLOR GAME CARTRIDGE Failed
| CONF | DIAGNOSIS | PART MATCH | ACTION |
|---|---|---|---|
|
95%
CONF
|

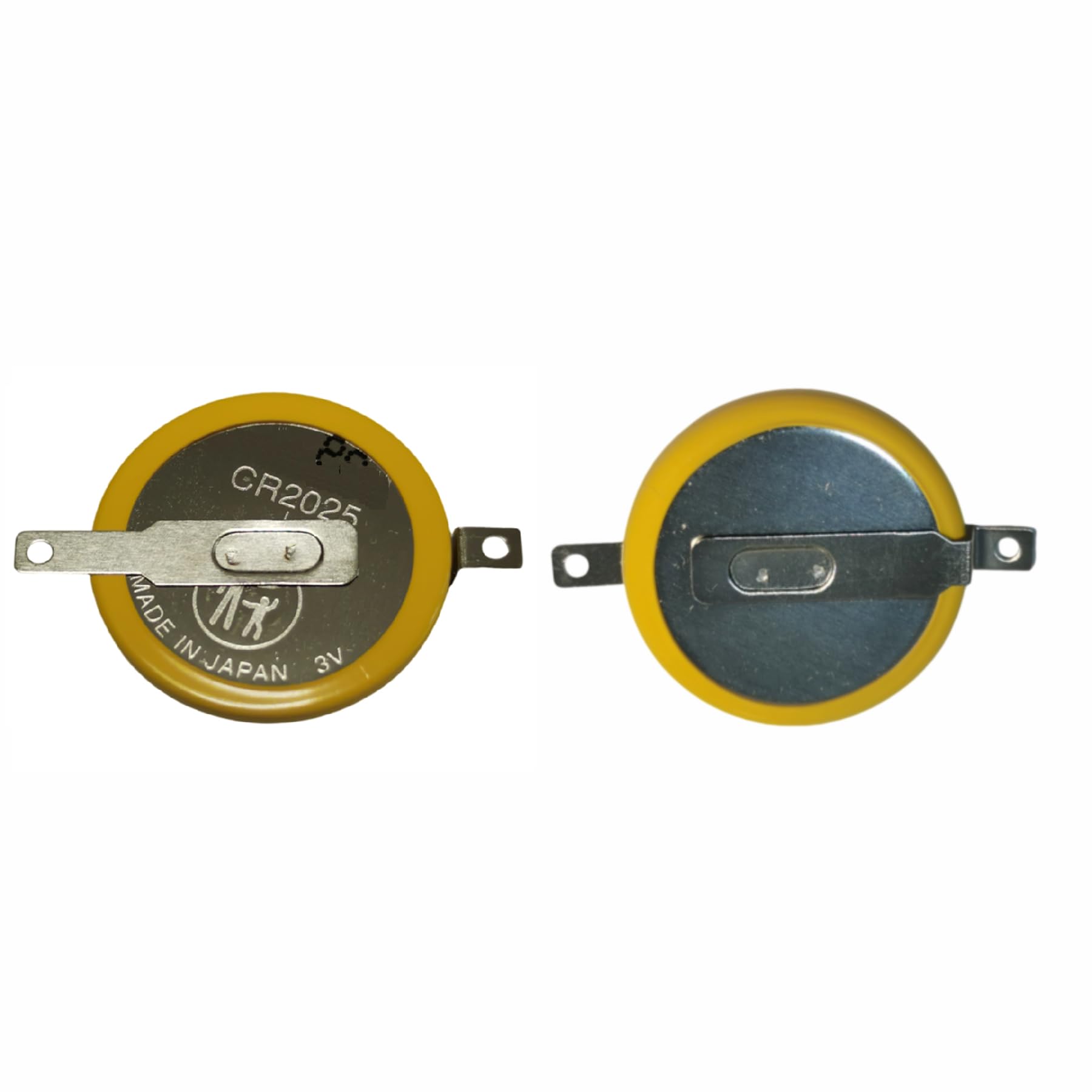

Tabbed CR2025 3V Lithium Battery
The cartridge uses volatile SRAM which depends on a constant voltage to prevent bit-state decay. The original lithium battery has undergone chemical depletion after 20+ years, falling below the required voltage for data retention. Installing a new tabbed lithium cell restores the necessary power bus to the SRAM chip for long-term data storage.
|
|
|
|
5%
CONF
|
Secondary Circuit / Wiring Check
Inspect wiring harness.
|
|
DIY Repair Guide
Watch exactly how to replace the Tabbed CR2025 3V Lithium Battery.
