DJI FPV DRONE Error
| CONF | DIAGNOSIS | PART MATCH | ACTION |
|---|---|---|---|
|
85%
CONF
|
DJI FPV ESC Module Board
The ESC module contains the MOSFETs and gate drivers required to commute the brushless motors. An 'ESC Status Error' typically points to a hardware failure on this board, such as a blown capacitor or a damaged switching FET that prevents the motor synchronization signal from completing its startup handshake.
SKU: Part 12 / CP.FP.00000021.01
|
|
|
|
10%
CONF
|
DJI FPV 2260 Brushless Motor
Internal winding shorts or debris-induced mechanical resistance in the motor bell can cause the ESC to detect an 'out of sync' or over-current condition. This safety interrupt is then reported to the user as a generic ESC status error to prevent further damage to the power distribution system.
|
|
|
|
5%
CONF
|

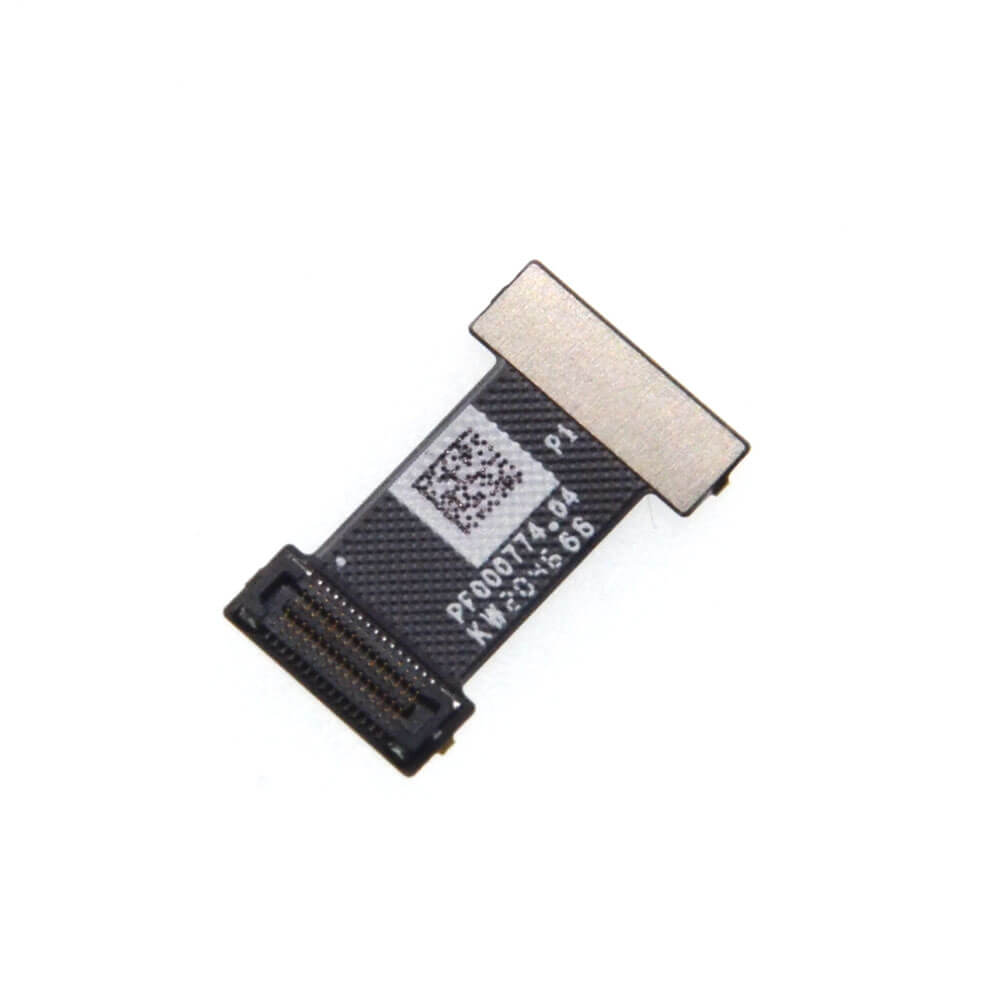

ESC-to-Flight Controller Ribbon Cable
Intermittent communication between the logic board and the power board can be caused by vibration-induced fatigue or connector oxidation on the flexible flat cable (FFC). If the digital signal for the motor speed is lost, the system defaults to a status error.
|
|
DIY Repair Guide
Watch exactly how to replace the DJI FPV ESC Module Board.
