ABODE ABODE MOTION SENSOR (PIR) General Troubleshooting
| CONF | DIAGNOSIS | ACTION |
|---|---|---|
|
92%
CONF
|
CR123A 3V Lithium Battery
The PIR sensor relies on high-energy-density lithium chemistry to handle the burst current required for RF transmissions. Standard alkaline or low-quality cells suffer from voltage sag during transmit cycles, leading to premature low-battery signals even if capacity remains. High-capacity lithium cells ensure the voltage rail stays above the sensor's brown-out threshold during signal bursts.
|
|
|
8%
CONF
|

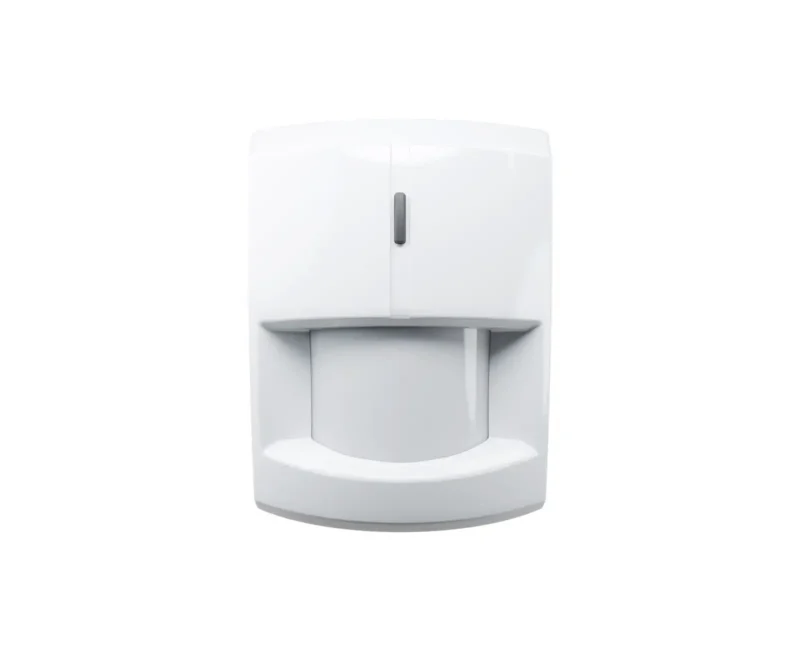

Abode Motion Sensor (PIR)
If battery replacement does not resolve the issue, the internal Passive Infrared (PIR) circuit or the radio module typically has a hardware defect such as a leaky ceramic capacitor or a faulty Low-Dropout (LDO) regulator. This creates a parasitic current draw that depletes the cell during 'sleep' states, which are intended to be in the micro-amp range. As these components are surface-mounted and non-serviceable, the full sensor assembly must be replaced.
SKU: 104044/A
|
DIY Repair Guide
Watch exactly how to replace the CR123A 3V Lithium Battery.
